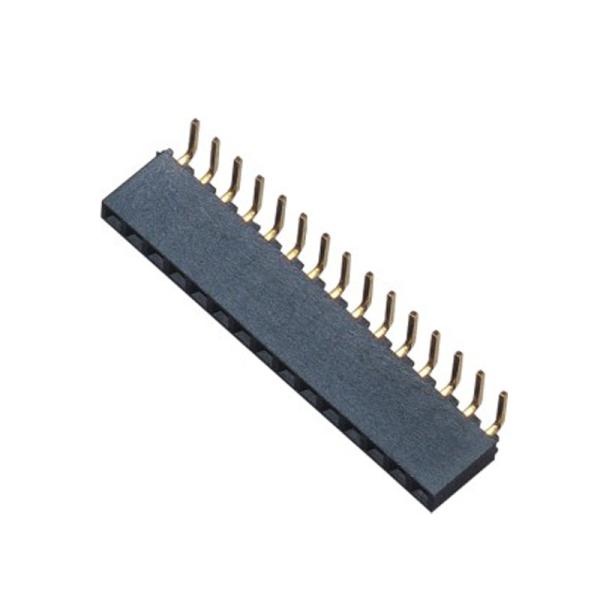

2 pitch single row bent insert female connector plastic height 6.35mm Curved plug

  • 1
  • 2

Brand Name : WCON

Model Number : 2263-1XXRG0DYNT1

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000PCS

Price : negotiaiton

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15~25Day

Packaging Details : Tube

Insulator Material : LCP+30％GF UL94V-0

Contact Plating : AU over Ni

Contact Material : phosphor Bronze

Product form : Curved plug

Product usage : With the use of needle insertion

Contact Now

2 pitch single row bent insert female connector plastic height 6.35mm​

Current Rating 2.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃

Item name: female connector:

1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.

2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.

3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.

2 pitch single row bent insert female connector plastic height 6.35mm Curved plug

2 pitch single row bent insert female connector plastic height 6.35mm Curved plugDrawing:Female Header 2263-1XXRXXDYNT1.pdf
