2.0mm Female Header Connector Curved plug H 7.2mm AU over Ni 2.0AMP

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

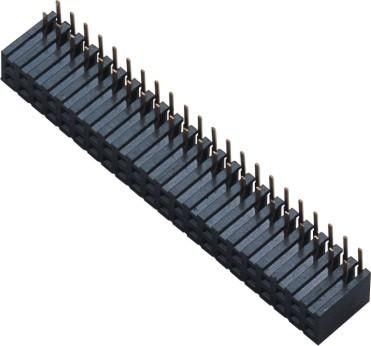

2.0mm Female Header Connector Curved plug H 7.2mm AU over Ni 2.0AMP

  • 1
  • 2

Brand Name : WCON

Model Number : 2272-2XXRG0CUNT1

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000PCS

Price : negotiaiton

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15~25Day

Packaging Details : Tube

Plastic height : 7.2mm

Plastic material : PA9T

Contact material : phosphor Bronze

Product range of use : electrical appliances

Pitch : 2.0mm

Contact Now

2.0mm Female Header Connector Curved plug H=7.2mm AU over Ni

Item name: female connector:

1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.

2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.

3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.

Current Rating 2.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material phosphor Bronze
Contact Plating AU over Ni
Insulator Material PA9T+30％GF UL94V-0

2.0mm Female Header Connector Curved plug H 7.2mm AU over Ni 2.0AMP

2.0mm Female Header Connector Curved plug H 7.2mm AU over Ni 2.0AMPDrawing:Female Header 2272-2XXRXXCUNT1.pdf
