Lengthen Type Mini Jumper Open Type 2.54 Mm Pitch Header PBT H=13.6 Brass UL

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

Lengthen Type Mini Jumper Open Type 2.54 Mm Pitch Header PBT H=13.6 Brass UL

  • 1
  • 2

Brand Name : WCON

Model Number : 3730-1301OS0X01

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 5000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15-25Day

Packaging Details : bag packing

pitch : 2.54mm

color : black or red

plastic high : h=13.0

Insulator Material : PBT+30%GF UL94V-0

Contact Material : Brass

port : hong kong

Contact Now

Lengthen type mini jumper open type 2.54mm PBT h=13.6 brass UL.

Lengthen Type Mini Jumper Open Type 2.54 Mm Pitch Header PBT H=13.6 Brass UL

Current Rating 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 1000V AC/minute
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Brass
Contact Plating Au over Ni
Insulator Material PBT+30%GF UL94V-0

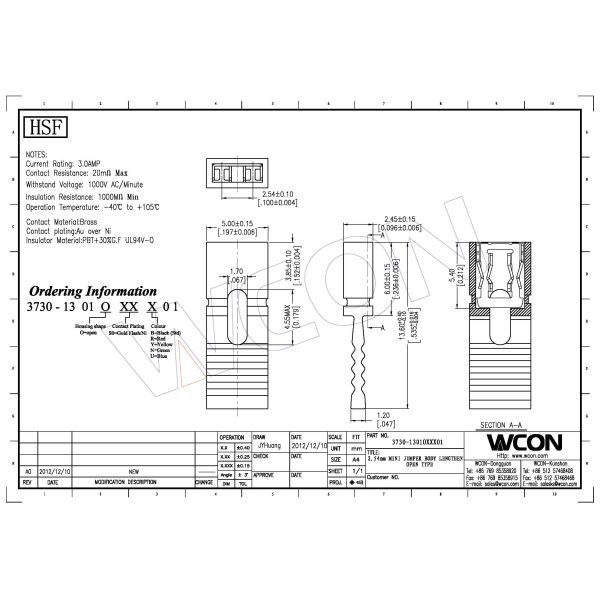

Lengthen Type Mini Jumper Open Type 2.54 Mm Pitch Header PBT H=13.6 Brass ULDrawing:Mini jumper 3730-1301OXXX01.pdf


Product Tags:

Lengthen Type round pin header



2.54 Mm single row pin header



2.54 Mm round pin header
